Stroboscopic shield (CB6419E)

Details
Written by: Newton C. Braga

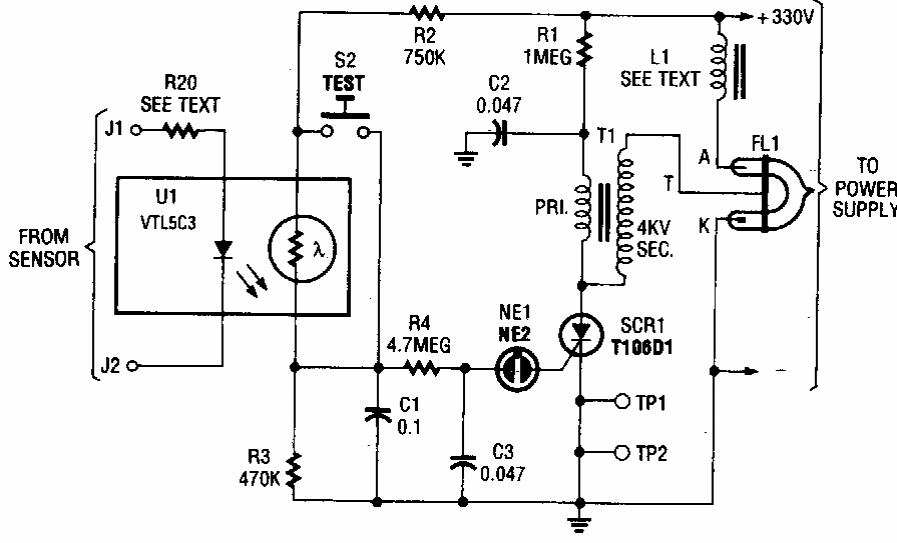

    Originally indicated as an alarm alert in a 1990s US publication, this circuit can be used as a shield to control a strobe lamp. The sensor is a optocoupler with LDR.
