Switching for EMG (CB7373E)

Details
Written by: Newton C. Braga

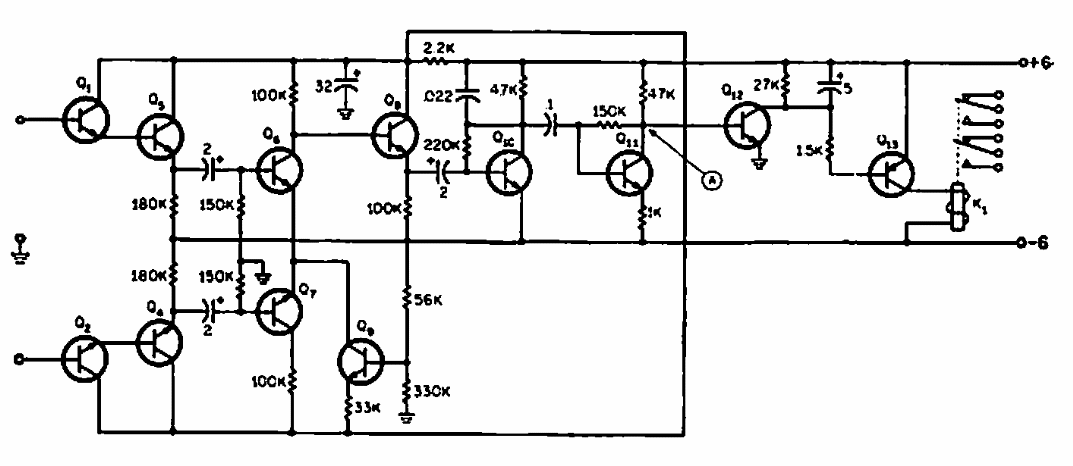

     This circuit was obtained in documentation on medical applications from 1966. The circuit is used in electromyography by switching the electrodes used with the equipment.




| Clique na imagem para ampliar |
