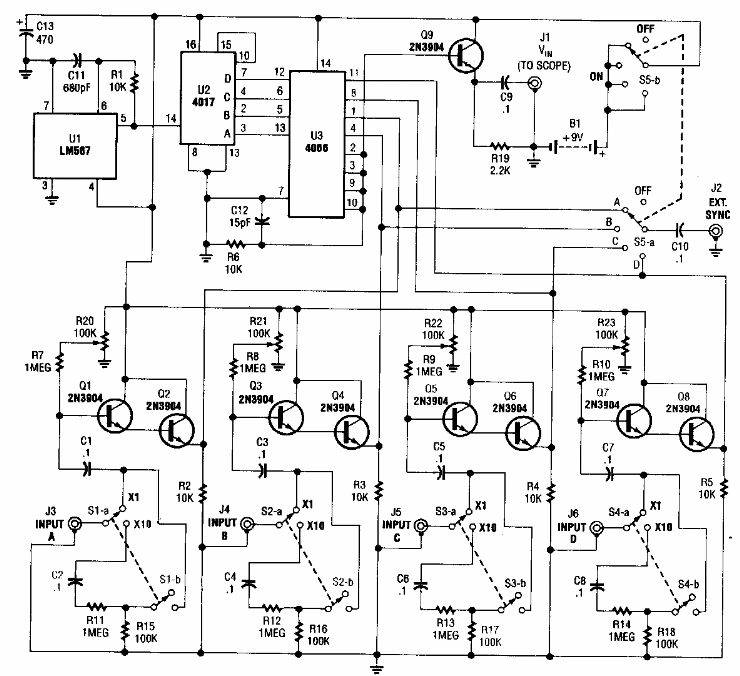

Found in a Popular Electronics from the 90s, this circuit transforms an ordinary oscilloscope into a 4-track oscilloscope. Of course, it is not a high frequency circuit, but the components used are common.
| Clique na imagem para ampliar |
Adapter for 4-track oscilloscope (CB7062E)
