Converter from +15 to -12 V (CB13556E)

Details
Written by: Newton C. Braga

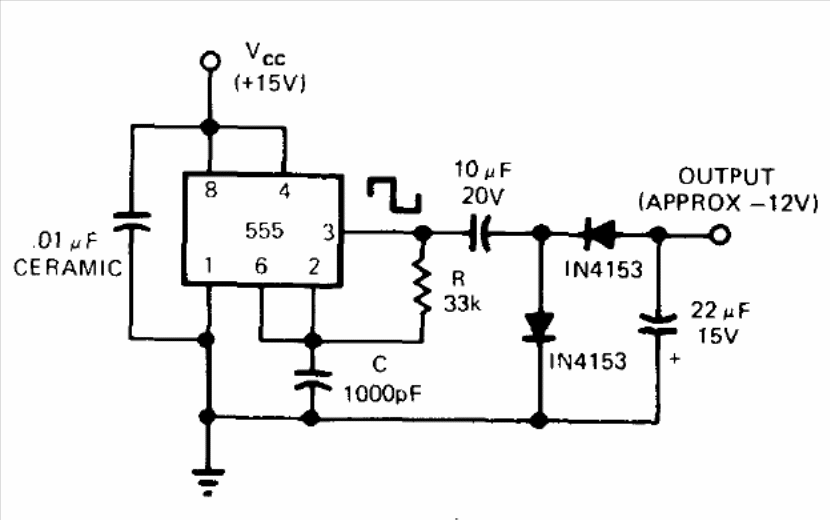

This circuit is designed to obtain a negative voltage from a positive supply for circuit polarization. The operating frequency is 20 kHz, and the maximum output current is in the order of a few tens of milliamps.
