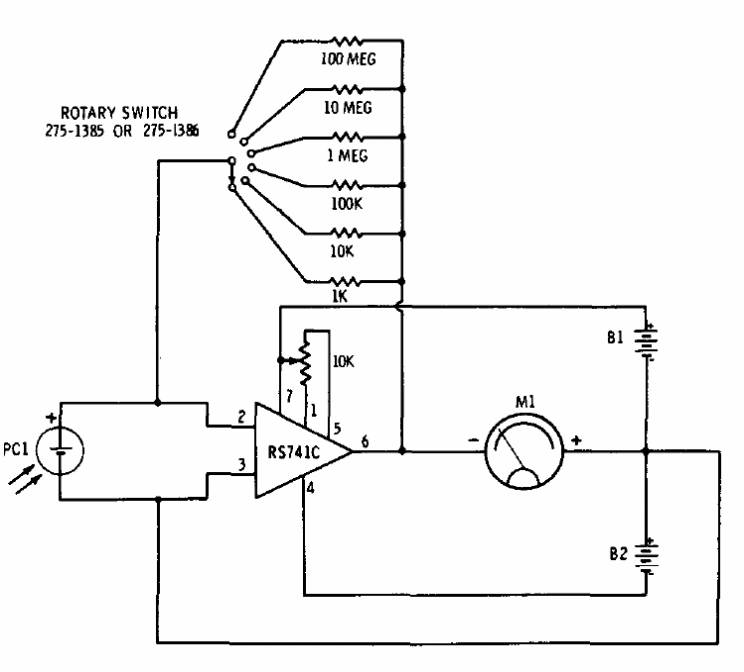

We found this circuit in a 1977 Radio Shack manual. The light bands are given by the operating gain selected according to the feedback resistors. The symmetric source is formed by two 9 V batteries and the instrument is a 0-1 mA milliammeter.
