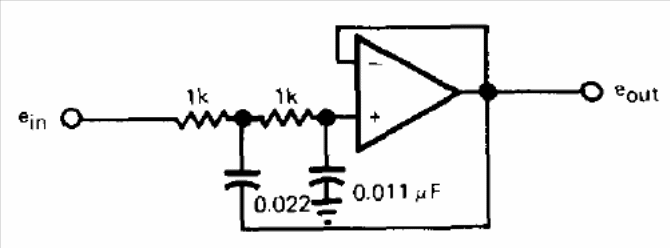

This Salen-Key filter can use any operational amplifier and other frequencies can be obtained by changing the components. The power supply must be symmetrical. We found this application in a 1978 documentation.
| Clique na imagem para ampliar |
10 kHz Low Pass Filter (CB13591E)
