Regulator Crowbar Protection (CB13916E)

Details
Written by: Newton C. Braga

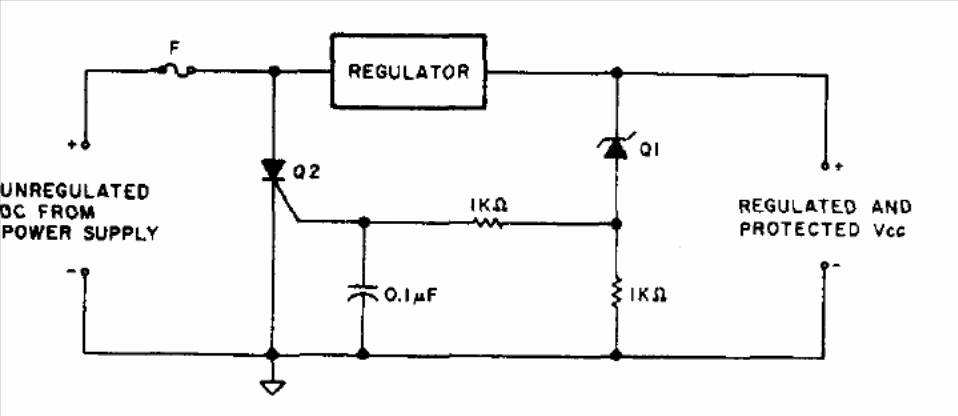

We found this circuit in a 1978 documentation. The SCR conducts when the regulator's output voltage exceeds the zener voltage.




| Clique na imagem para ampliar |
