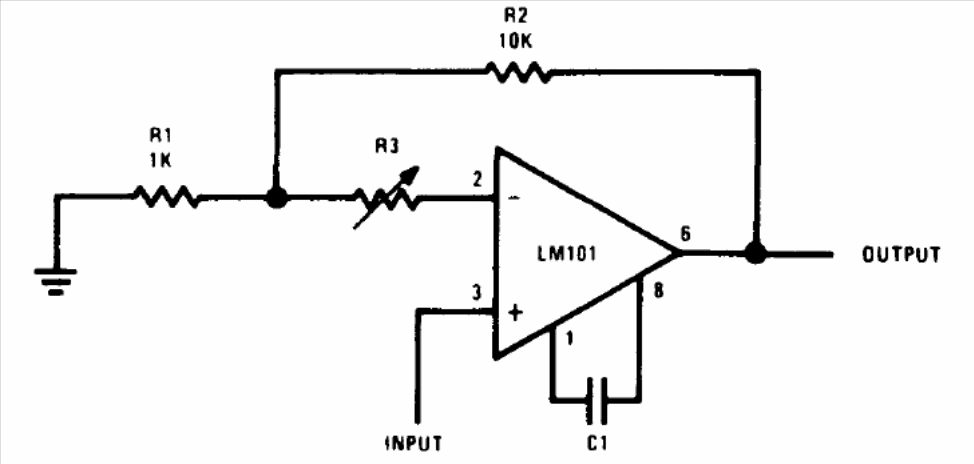

This circuit is from the National Semiconductor's Linear Application Handbook of 1994. The same technique given by the presence of R3 can be applied to other circuits with operational ones. The source is symmetrical and the relationship between R2 and R1 determines the gain.
