Power supply 15 + 15 V x 1 A LM340-15 (CB14259E)

Details
Written by: Newton C. Braga

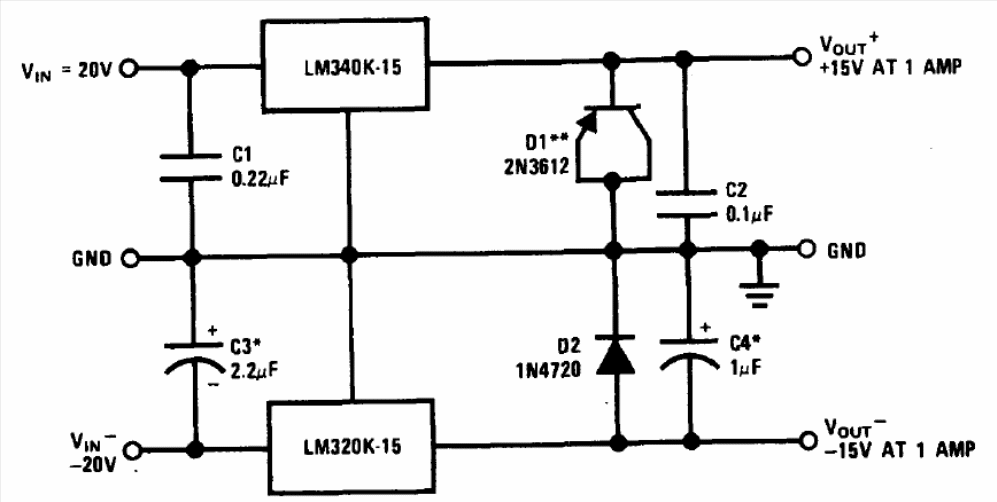

The circuit below is from National Semiconductor's Linear Applications Handbook. Integrated circuits must have heatsink, and the transistor is for general purpose, functioning as a diode.
