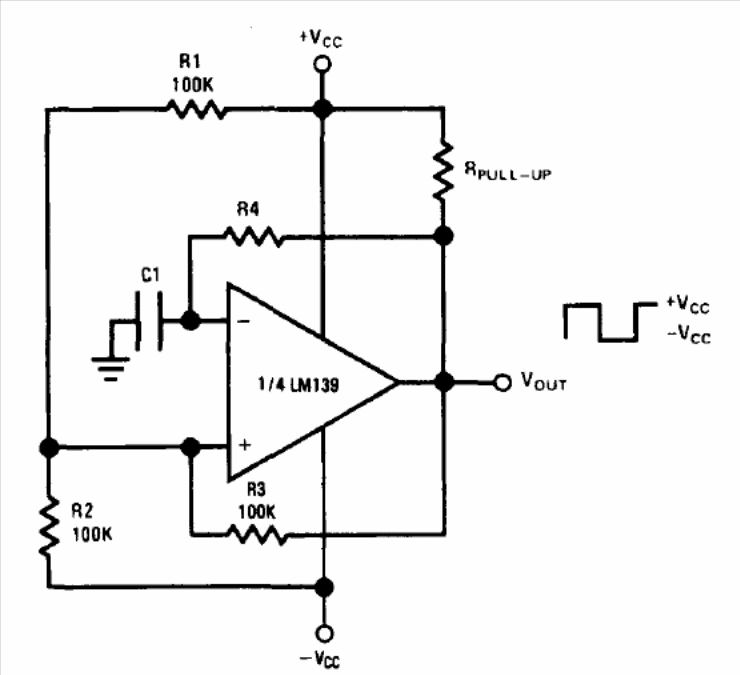

The frequency of this circuit, which uses one of the LM139 comparators, depends on C1. The circuit uses a symmetric source that determines the amplitude of the output signal. The circuit is from National Semiconductor's Linear Applications Hanbook.
