Continuous 1.5 V Indicator LM3909 (CB14280E)

Details
Written by: Newton C. Braga

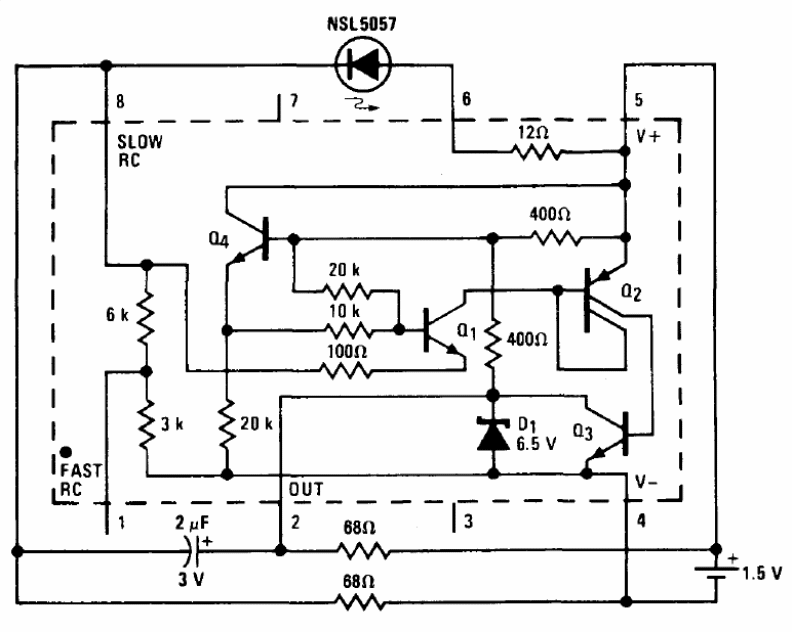

The circuit presented was obtained in a technical documentation from National Instruments. The low-consumption circuit supplies a common LED with a voltage of just 1.5 V.
