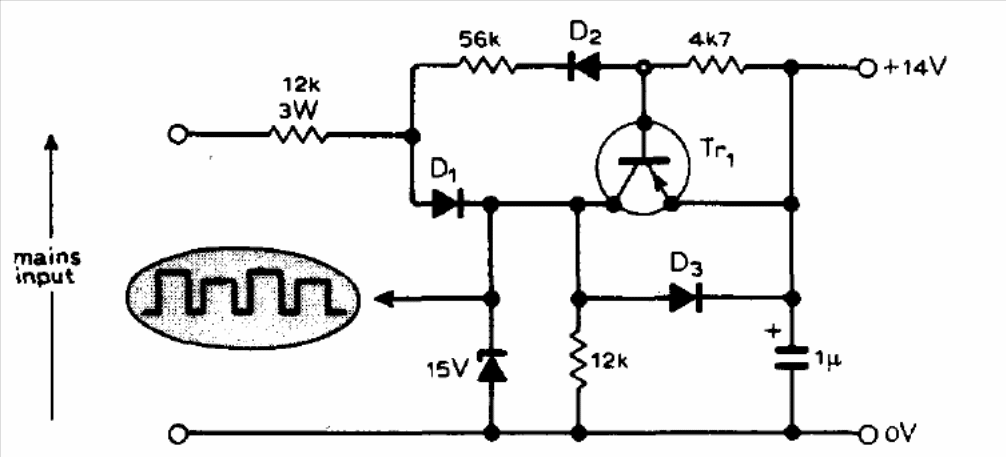

This circuit, found in a 1977 documentation, indicates when the grid voltage goes through zero. Under these conditions, it produces an output pulse whose duration depends on the capacitor.
| Clique na imagem para ampliar |
Zero Crossing Detector (CB13641E)
- Details
- Written by: Newton C. Braga
