TTL Logic Level Indicator (CB13788E)

Details
Written by: Newton C. Braga

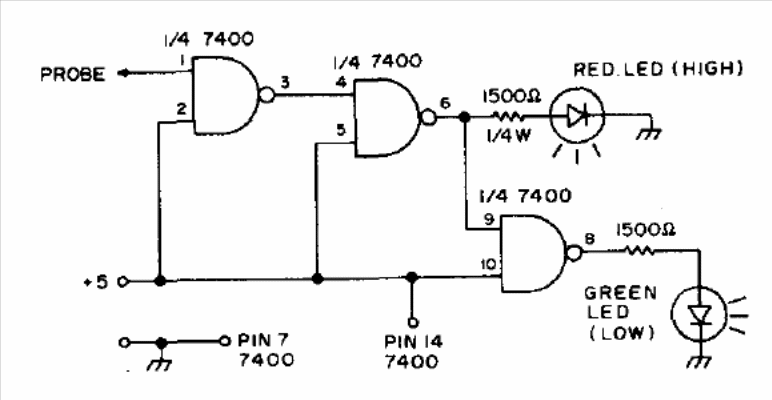

This circuit is powered by the source of the equipment under analyze. We found this configuration in a 1974 documentation.






| Clique na imagem para ampliar |
