Locking circuit with the LM3909 (CB14294E)

Details
Written by: Newton C. Braga

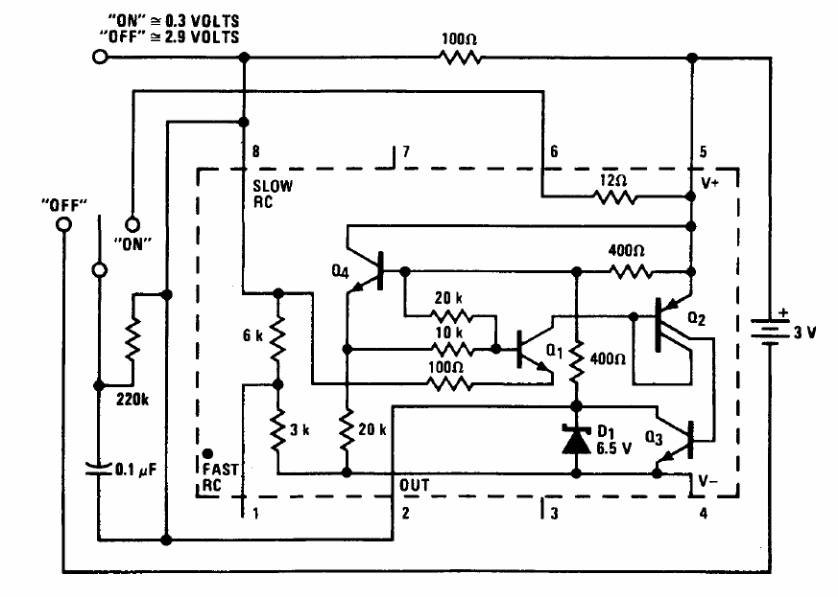

This latched switch configuration was obtained from National Semiconductor documentation on the LM3909. The circuit works with a 3 V power supply.




| Clique na imagem para ampliar |
