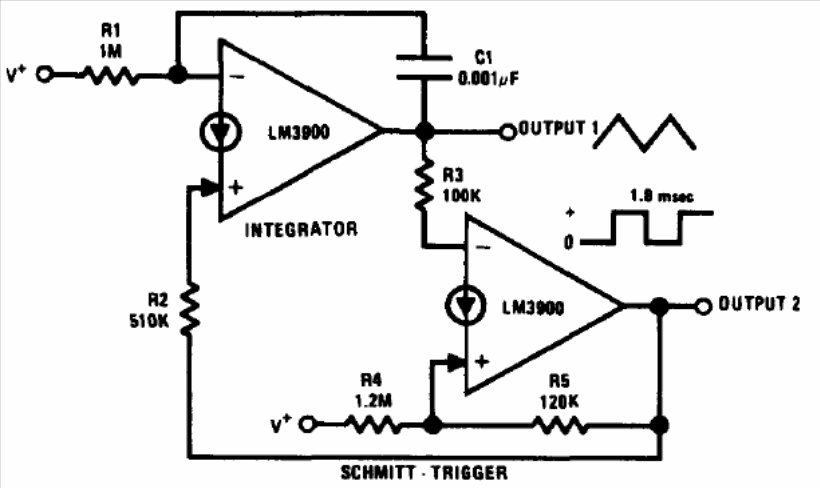

We find the circuit below in the 1994 Linear Applications Handbook by National Semiconductor. The circuit can be changed to generate signals from other frequencies. The LM3900 is a transconductance (OTA) operational amplifier.
| Clique na imagem para ampliar |
