Beeper 555 (CB13752E)

Details
Written by: Newton C. Braga

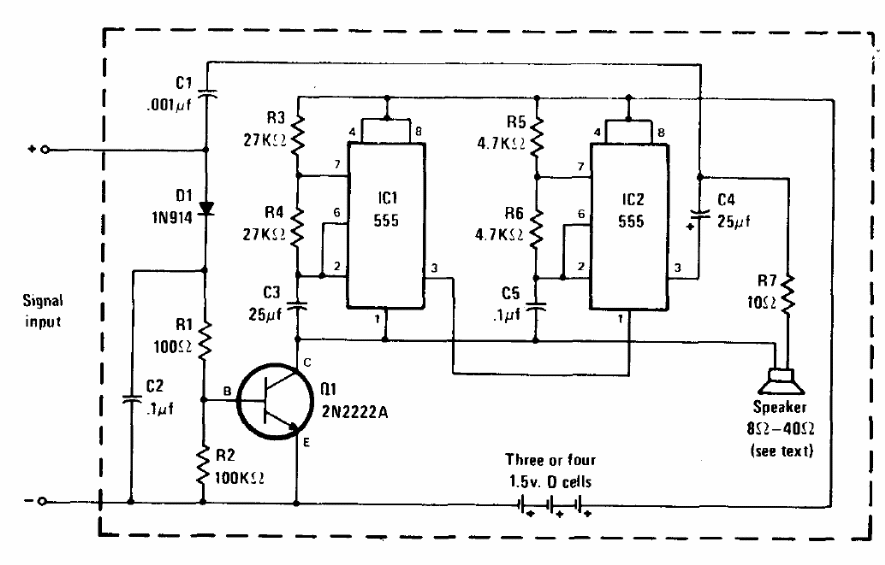

This circuit was originally recommended to give the call signal on intercoms. However, it can be used with other applications. The circuit is from 1978 documentation. The transistor may be the BC548.
