Ultra High Gain FET Stage (CB14146E)

Details
Written by: Newton C. Braga

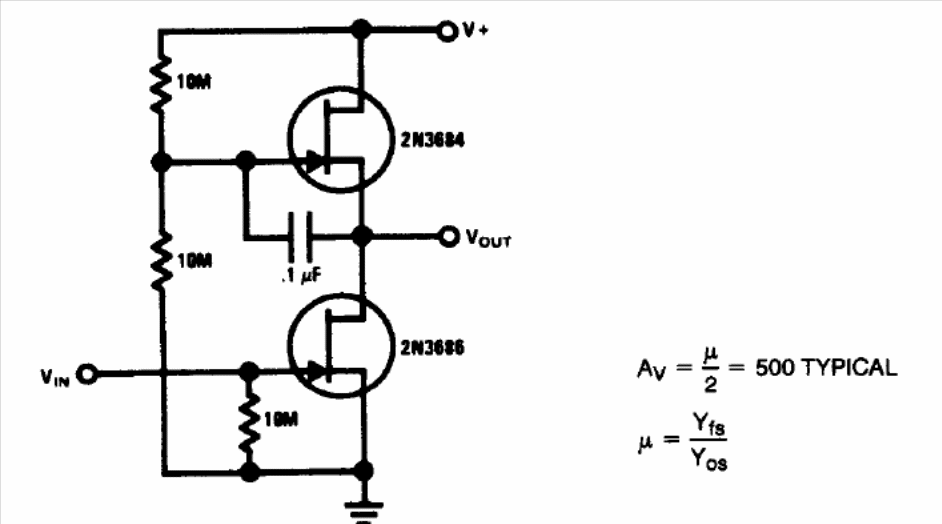

The circuit shown has a voltage gain of 500 times and can use equivalent FETs like the BF245. The circuit is suggested by National Semiconductor in its 1994 Linear Applications Handbook.




| Clique na imagem para ampliar |
