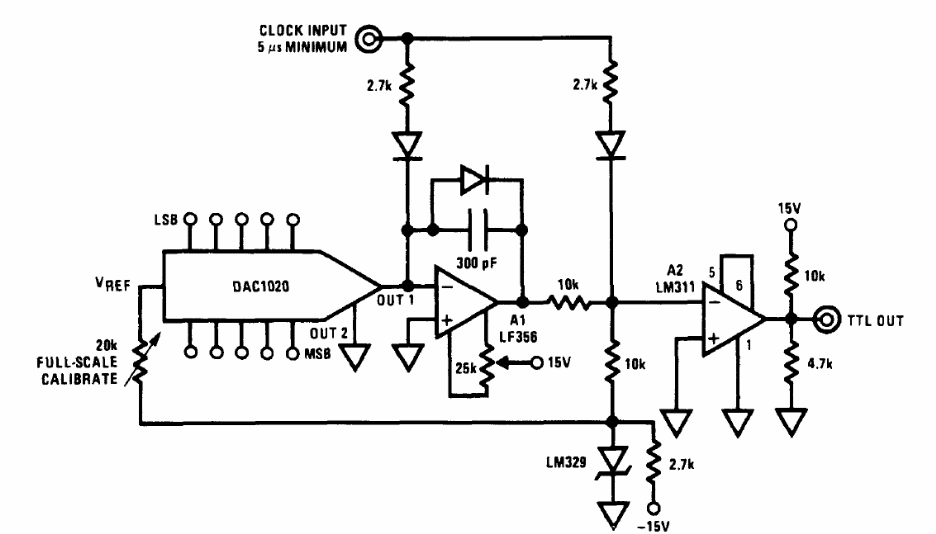

Digitally Controlled Pulse Width Modulator (CB14367E)

Details
Written by: Newton C. Braga



The circuit presented was found in the Linear Applications Handbook of the National Semiconductor of 1994. It is based on a DAC1020 and operational not common today.
