250 Hz Low Pass Filter (CB13602E)

Details
Written by: Newton C. Braga

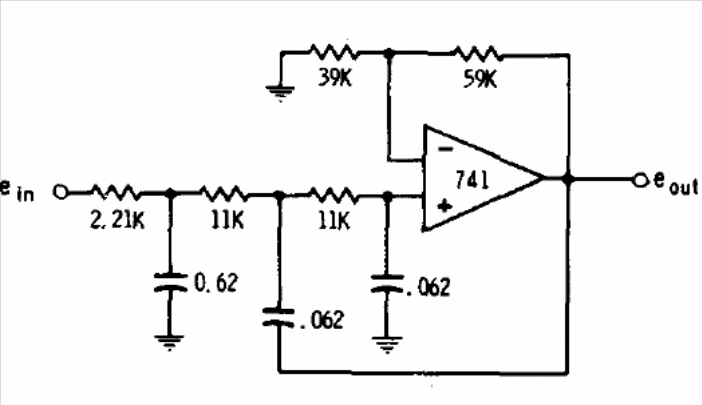

This third-order filter was found in a 1975 publication. The circuit must be powered by a symmetrical source. The components can be changed for operation on other frequencies.
