Current Sensor (CB13707E)

Details
Written by: Newton C. Braga

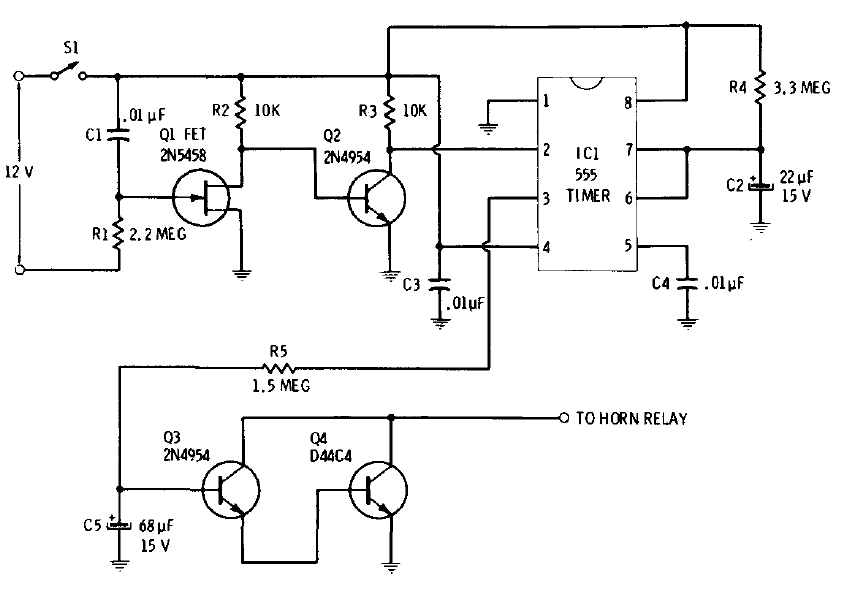

This circuit is intended to detect when current flows through the opening of a car door. The circuit fires the horn for 90 seconds. The FET can be the BF245 and the NPN transistors can be the BD135.




| Clique na imagem para ampliar |
