RF Oscillator LM3909 (CB14292E)

Details
Written by: Newton C. Braga

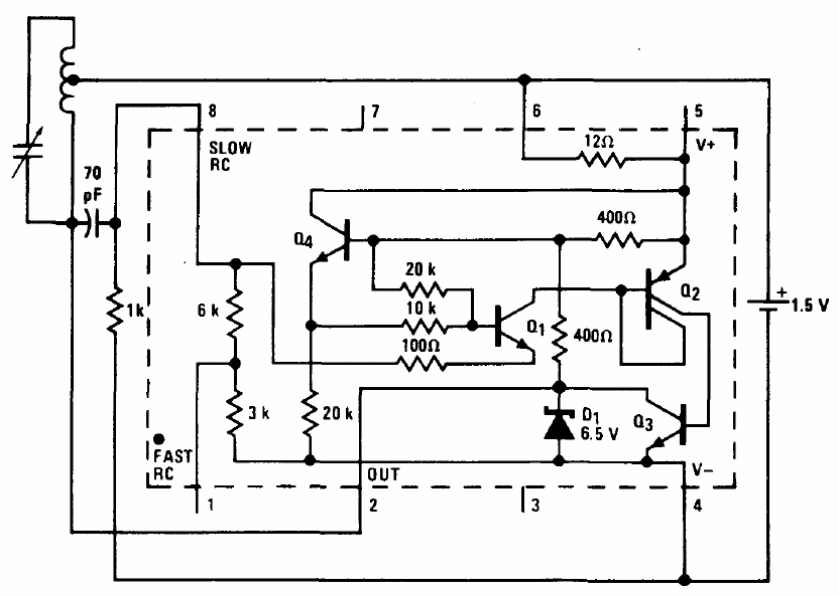

We found this circuit in documentation from National Semiconductor. For the medium wave range the coil consists of 50 + 50 turns of wire 28 in a ferrite rod.




| Clique na imagem para ampliar |
