SCR Optical Full Wave Control (CB13766E)

Details
Written by: Newton C. Braga

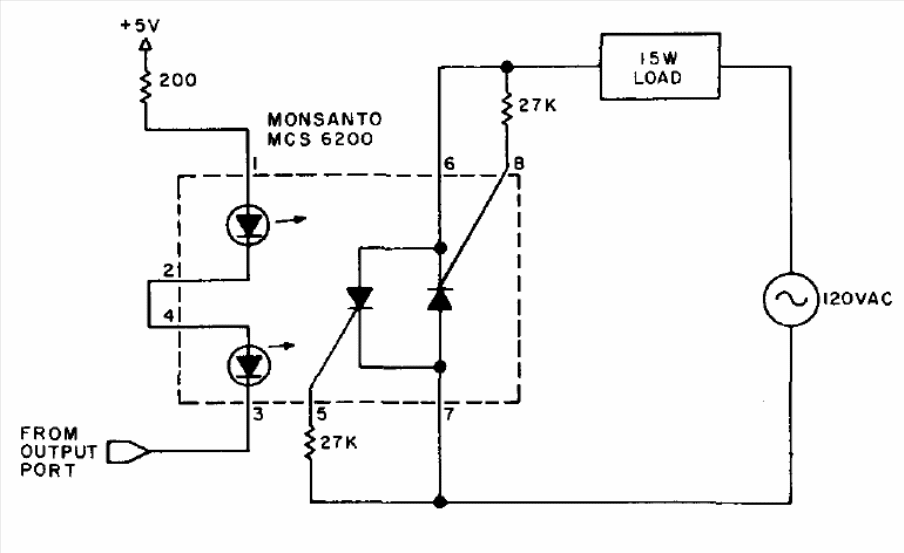

This shield circuit, from a documentation from the 70s, employs an optocoupler with two SCRs to control a small load of 1.5 W.
