Voltage Regulator (CB14119E)

Details
Written by: Newton C. Braga

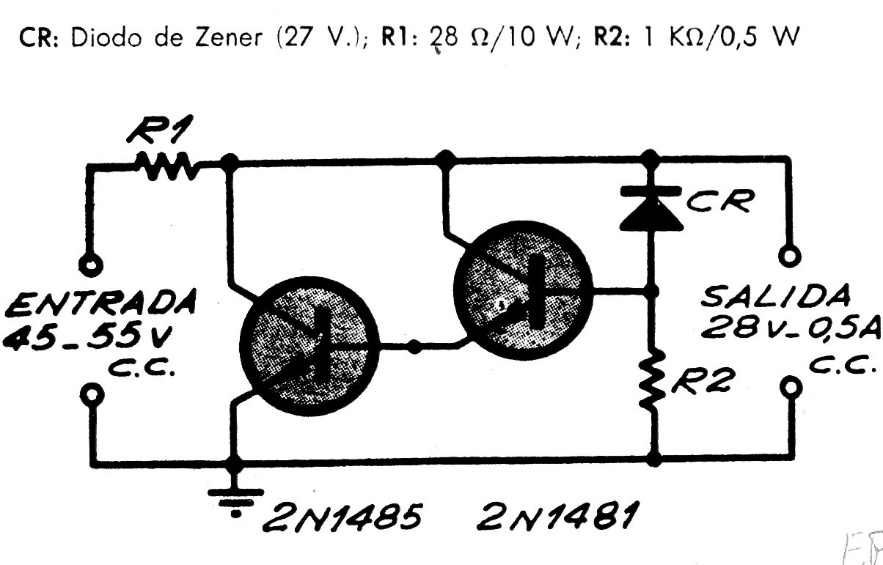

We found this parallel regulator in a 1973 publication. Transistors admit equivalents and the output voltage can be modified by changing the zener.
