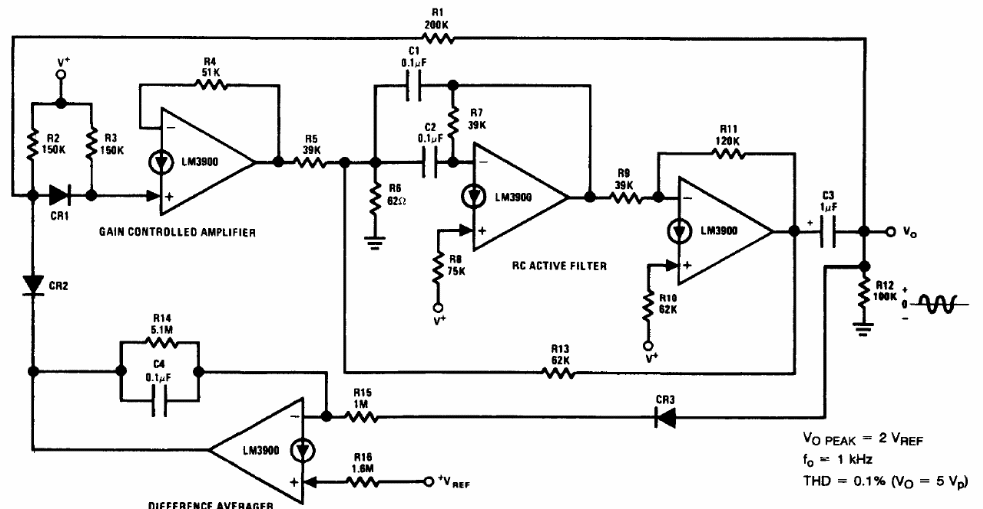

We found this circuit in the 1994 Linear Applications Handbook from National Semiconductor. The circuit uses an LM3900 transconductance operational amplifier. Capacitors can be changed to produce signals from other frequencies.
| Clique na imagem para ampliar |
