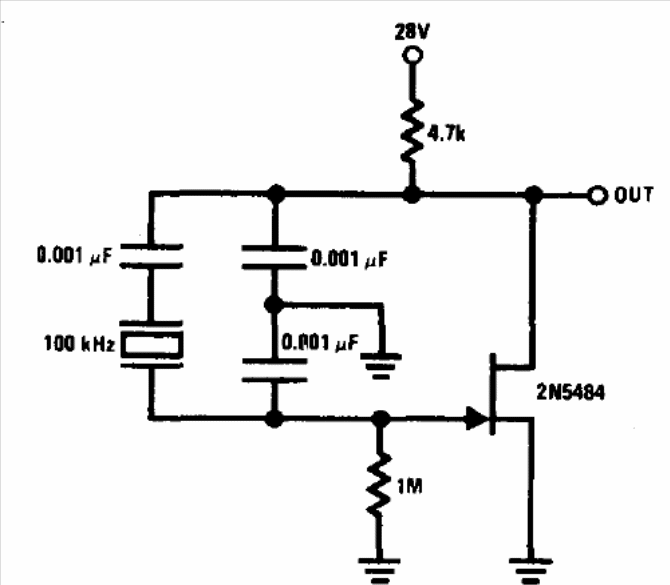

This circuit is from the National Semiconductor 1977 FET Databook. The FET can be BF245 or MPF102 and the frequency depends on the crystal. Capacitors must be ceramic. The frequency limit for this circuit is a few tens of megahertz and the current consumed is very low.
| Clique na imagem para ampliar |
