Transistor Tester (CB13990E)

Details
Written by: Newton C. Braga

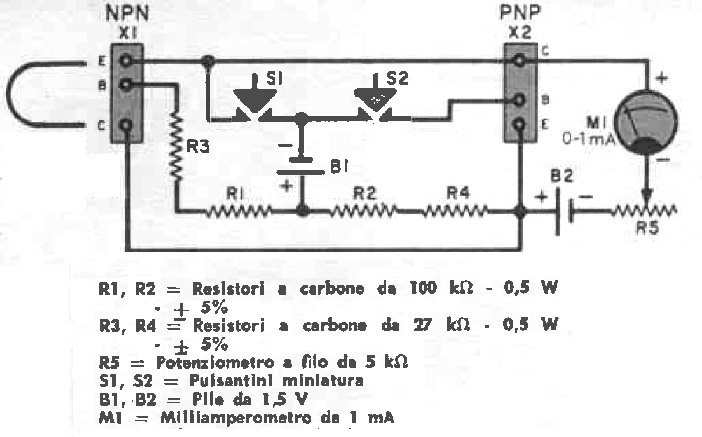

We found this circuit in a 1960 Radioarama magazine. The instrument tests common general-purpose transistors indicating their gain on a moving coil instrument. The loop serves to adjust the circuit.




| Clique na imagem para ampliar |
