High Gain FET (CB13750E)

Details
Written by: Newton C. Braga

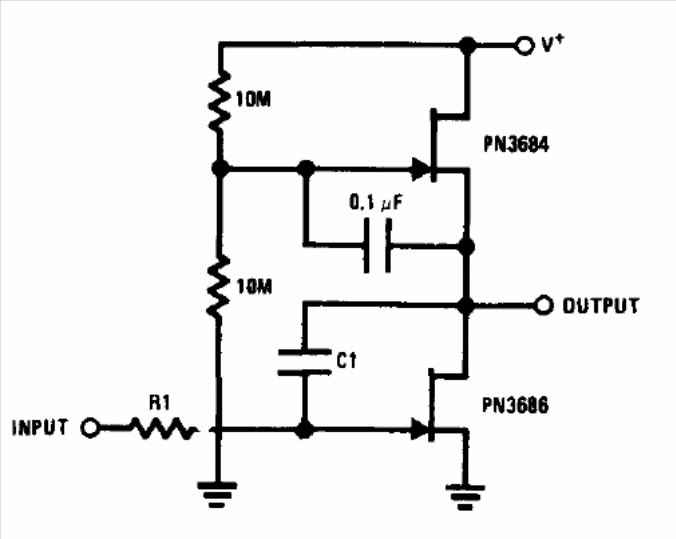

The configuration shown allows to obtain a high voltage gain for FETs. FETs can be BF245 or MPF102. The circuit is from the 1977 National Semiconductor FET Databook.




| Clique na imagem para ampliar |
