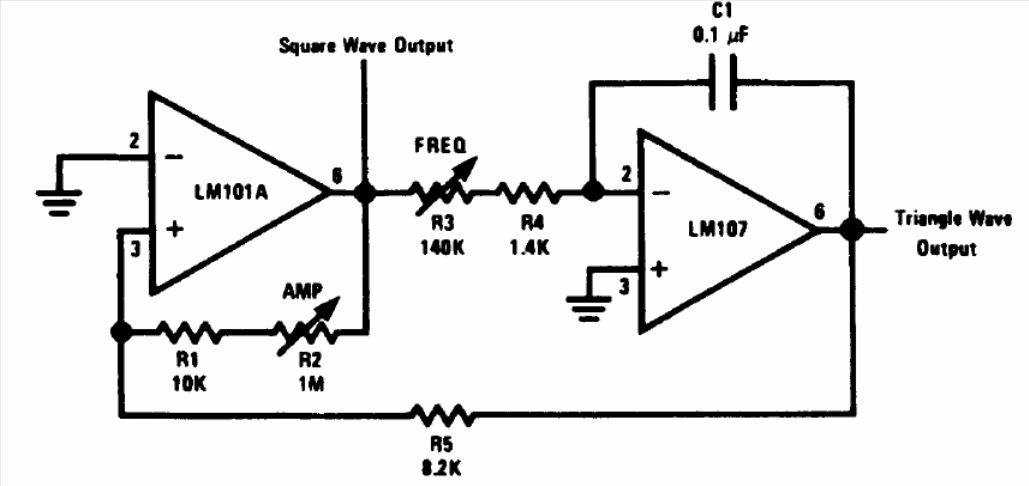

The circuit is from the National Semiconductor Linear Applications Handbook published in 1994. The signals are triangular and square, and the power source must be symmetrical. The circuit can be implemented with modern operational amplifiers and components with standardized values replaced by current ones with more common values.
