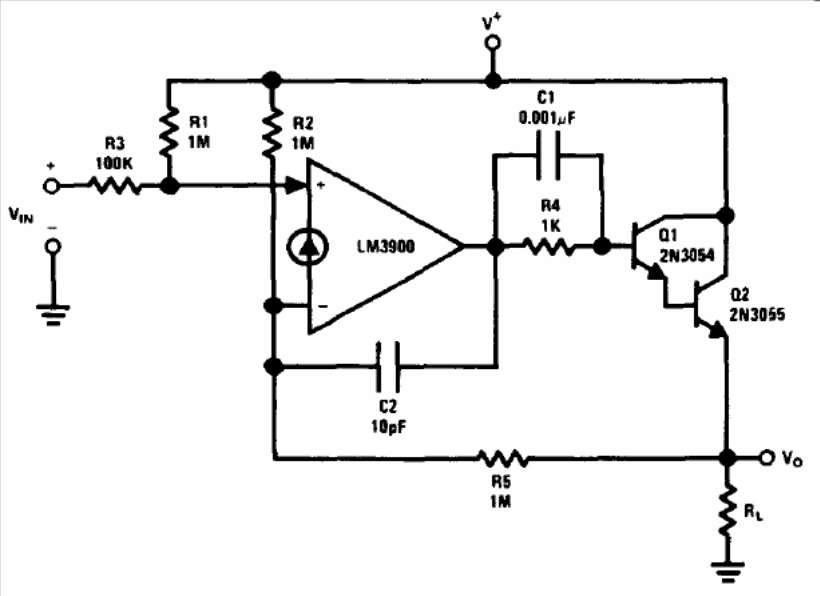

The circuit shows how to implement a power stage for the LM3900 transconductance operational amplifier. The circuit is suggested by the National Semiconductor Linear Applications Handbook. Q1 can be a BD135.
| Clique na imagem para ampliar |
Power Stage for the LM3900 (CB14185E)
- Details
- Written by: Newton C. Braga
