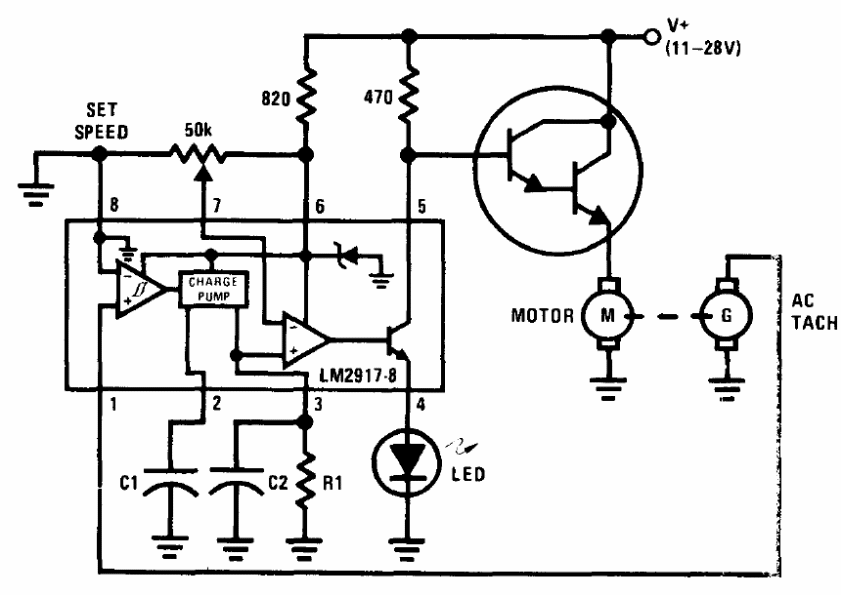

This circuit was found in the National Semiconductor's Linear Applications of 1978. The circuit uses a Darlington NPN according to the current required by the controlled motor. The integrated circuit is specific to the application and the motor must have a tachometric output to use its pulses.
