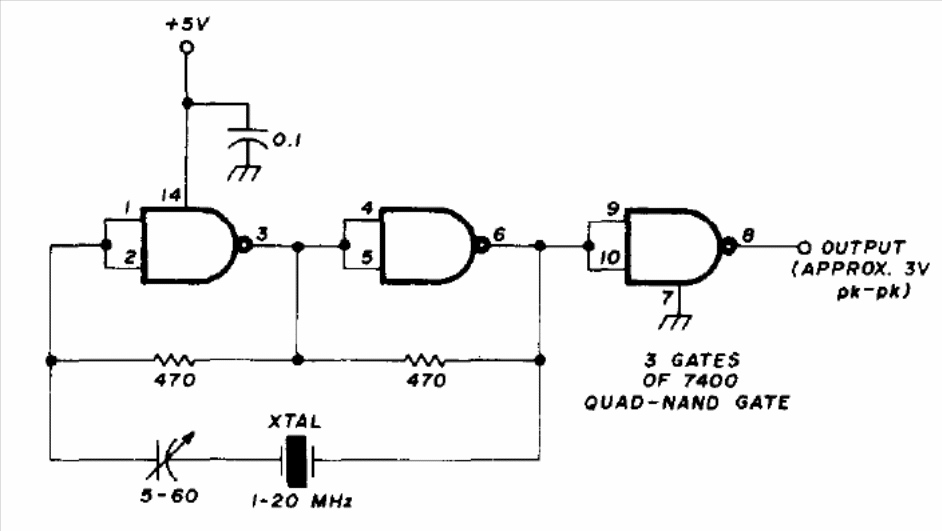

This traditional oscillator configuration with NAND TTL gates can generate signals up to 20 MHz, depending on the crystal used. The circuit must be powered by a voltage of 5 V. The circuit can be triggered by microcontrollers serving as a shield. The output signal is TTL rectangular.
