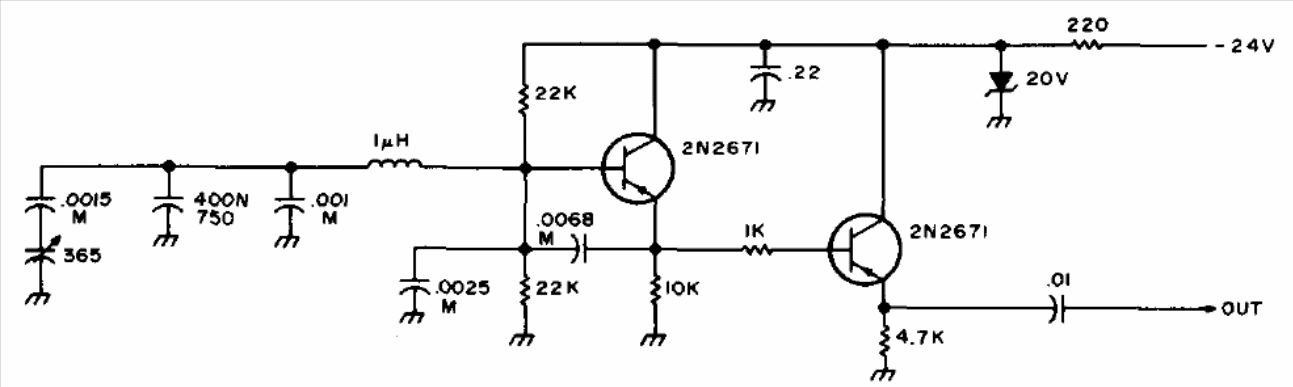

We found this oscillator in a documentation for radio amateurs from the 1970s. The circuit can use BC558 transistors and the coil together with the variable capacitor determines the generated frequency range. Other frequency ranges can be obtained by changing the corresponding components.
| Clique na imagem para ampliar |
