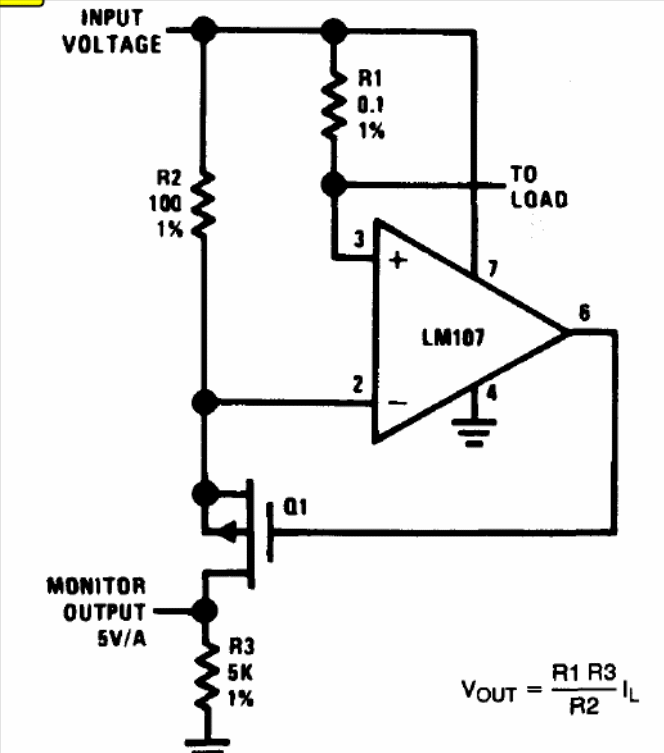

The circuit shown in the figure was suggested by National Semiconductor in its 1994 Linear Applications Handbook. The circuit can be implemented with other operational amplifiers and the power supply is symmetrical.
| Clique na imagem para ampliar |
Current Monitor (CB14134E)
- Details
- Written by: Newton C. Braga
