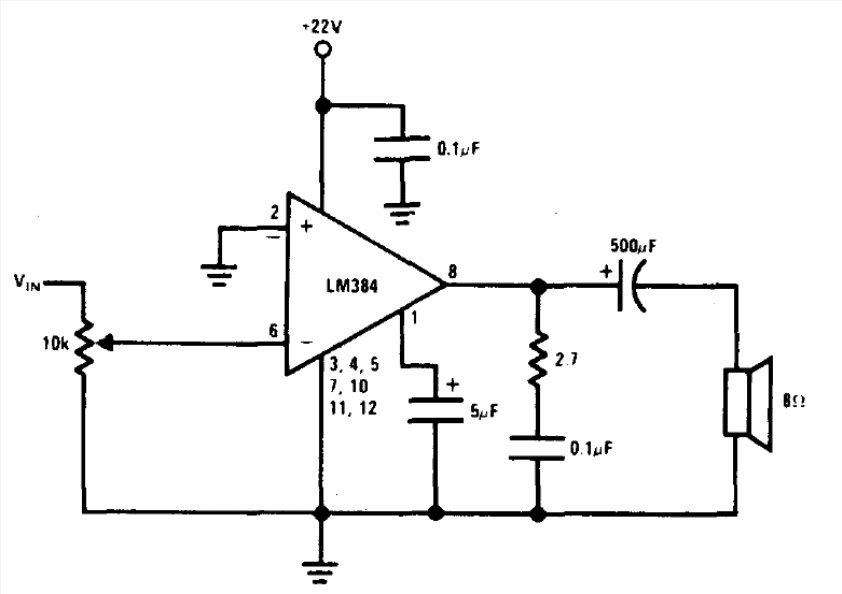

The integrated circuit used in this amplifier is not very common today. This amplifier was found in the 1977 National Semiconductor Audio Handbook. The power source must be at least 500 mA.
| Clique na imagem para ampliar |
5 W amplifier LM384 (CB13681E)
- Details
- Written by: Newton C. Braga
