Buffered Phase Shift Oscillator (CB14042E)

Details
Written by: Newton C. Braga

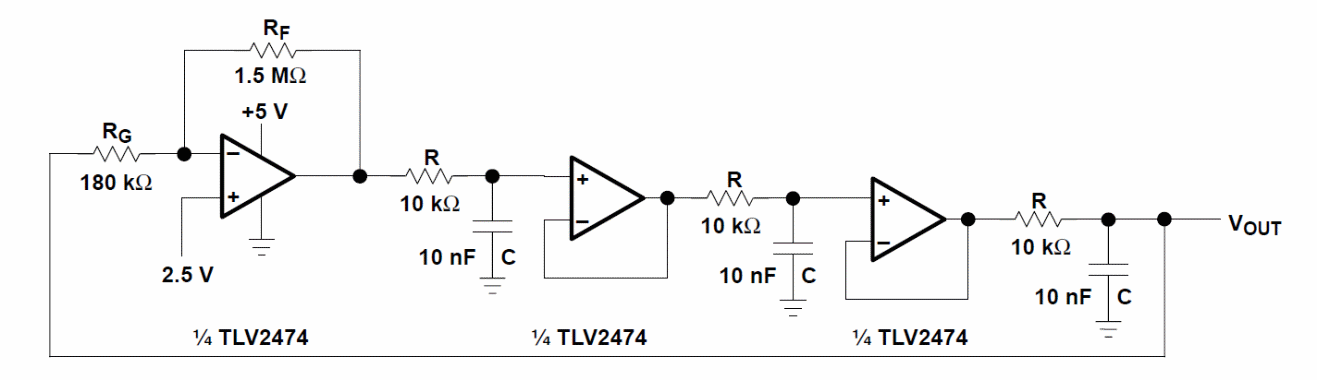

We found this circuit in a technical documentation from Texas Instruments. The generated signal is approximately 1.5 kHz given by R and C in the diagram. These components can be changed to other frequencies and the signal generated is sinusoidal.




| Clique na imagem para ampliar |
