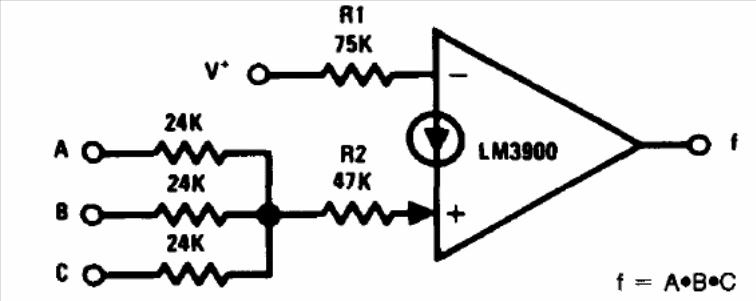

In the figure we have an AND gate with the LM3900 operational transconductance amplifier. The circuit is suggested by National Semiconductor in its 1994 Linear Applications Handbook. The circuit must be powered by a symmetrical source.
