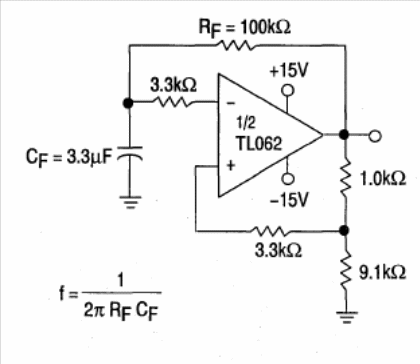

This configuration found in other companies' manuals is from Motorola's 1993 Linear Interface ICs. The circuit can be changed to generate other frequencies. The power supply must be symmetrical.
0.5 Hz Rectangular Oscillator (CB15304E)
