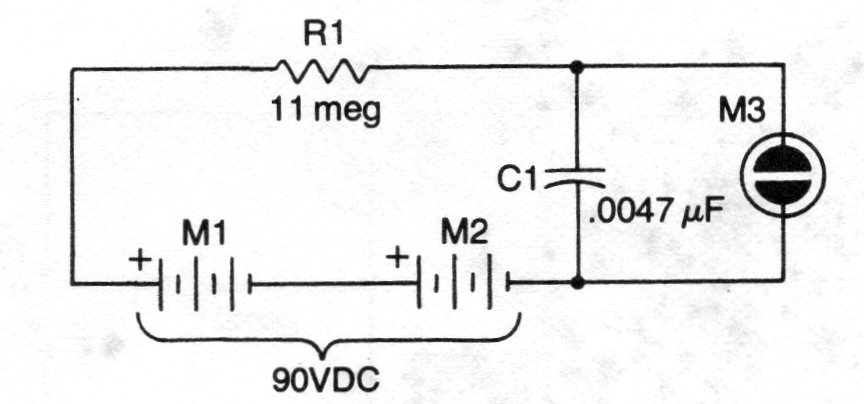

This configuration, found in many publications, is from an American book from 1981. The power comes from two 45 V batteries that no longer exist today. Therefore, a source with a voltage of 90 to 120 V must be used and the current need not be greater than 1 mA. The frequency depends on the capacitor.
