MW Commercial Radio of the 70's (CB14613E)

Details
Written by: Newton C. Braga

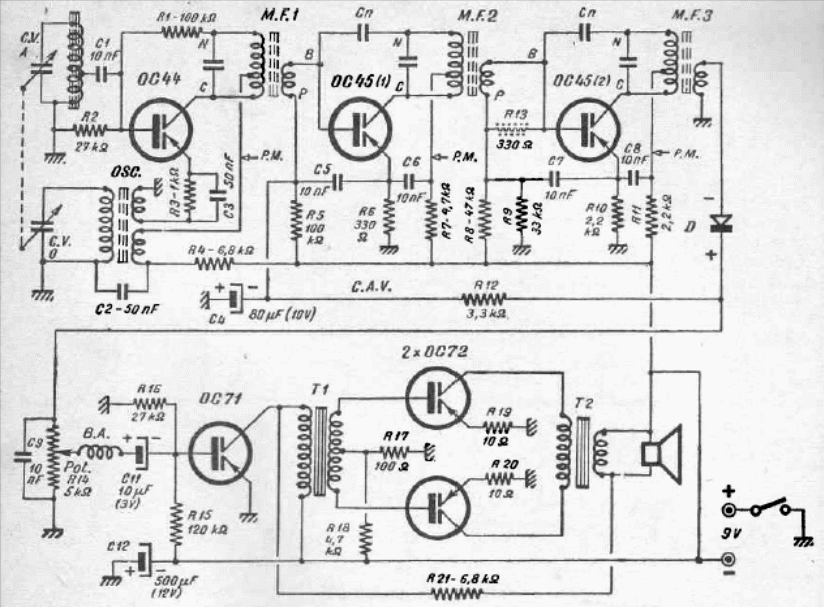

This 6-transistor circuit had excellent sensitivity using germanium transistors. The push-pull stage used two transformers, one drive and one output as we usually find at the time.
