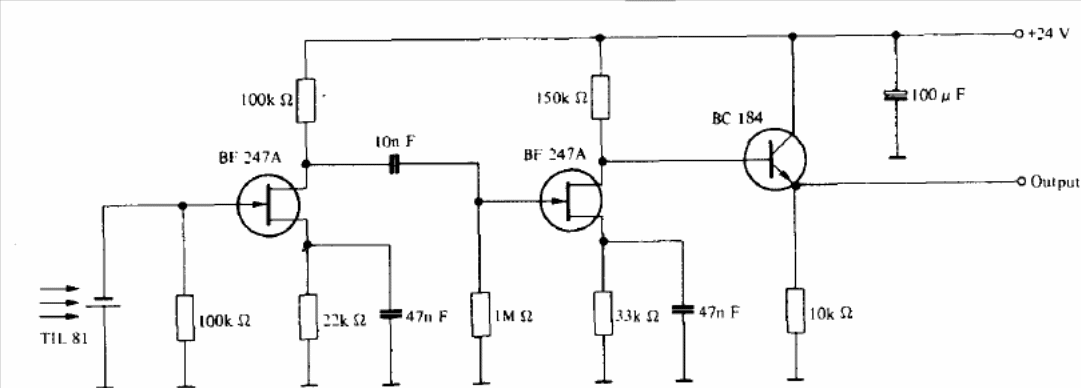

We found this circuit in the Texas Instruments optoelectronics manual. Field effect transistors can be BF245 and bipolar BC548. The sensor is a photodiode in the photo-generator mode.
| Clique na imagem para ampliar |
Optical Telephony Receiver (CB14698E)
