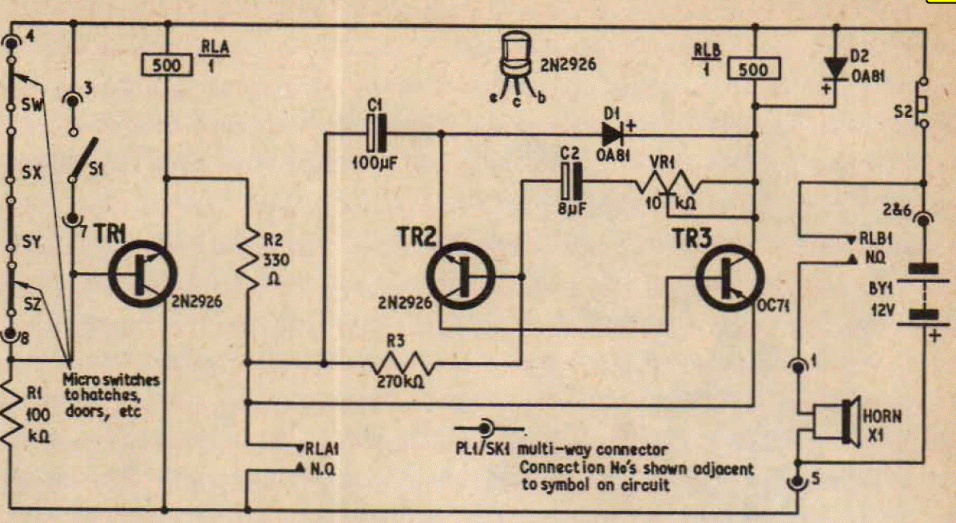

This circuit is from an English documentation from 1968 but can be assembled with modern transistors such as the BC548. The circuit uses wire or reed interrupt sensors connected in series. The power depends on the relay voltage.
| Clique na imagem para ampliar |
