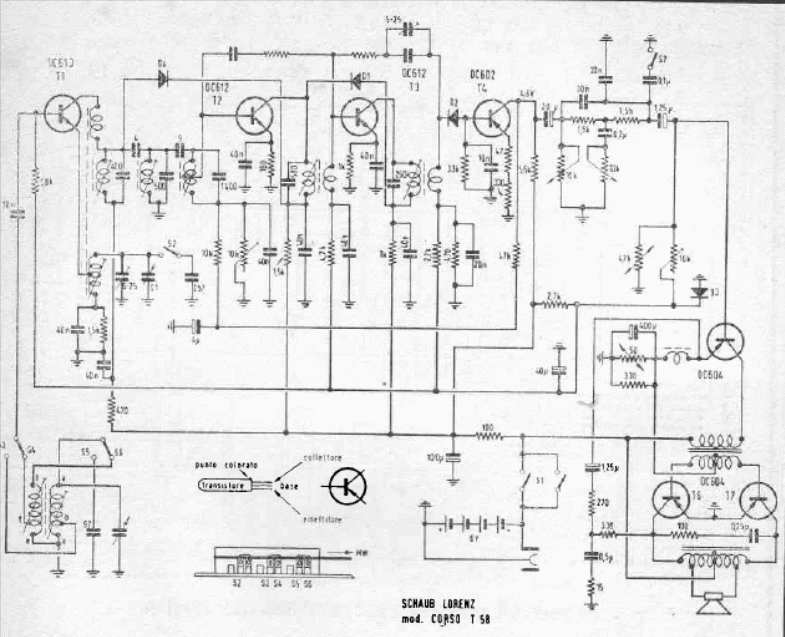

This circuit from the 70's used germanium transistors and operated in the range of medium and short waves with good gain. Critical components, in addition to transistors, are transformers. The feeding was done with 4 batteries.
| Clique na imagem para ampliar |
