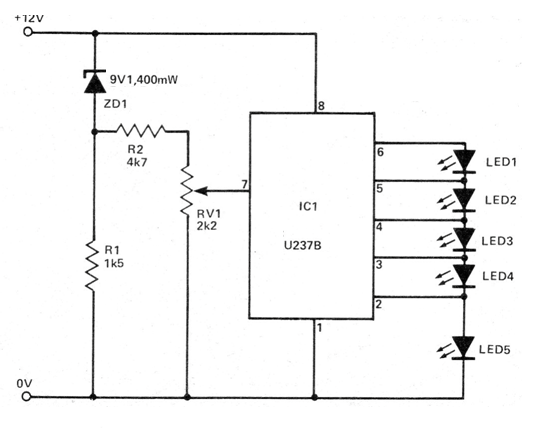

This circuit monitors the state of a 12 V battery and can be used directly with one, or even in a charging circuit. The circuit is from an old documentation from 1982 and RV1 must be adjusted so that LED3, which indicates the normal state lights up.
Battery Monitor (CB15080E)
- Details
- Written by: Newton C. Braga
