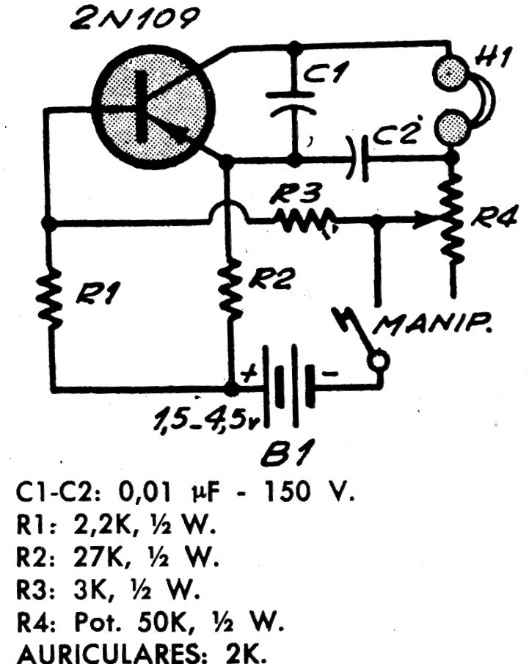

We found this circuit in an Argentine publication from 1973. The original transistor is made of germanium and the phone must be magnetic with an approximate impedance of 2k. Power is provided by 1 to 3 standard batteries connected in series. R4 adjusts the frequency.
