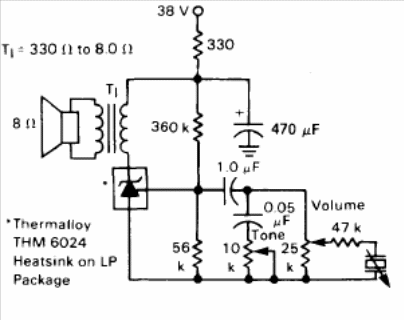

This configuration, different from Motorola's 1990 Linear Databook, uses a voltage reference integrated circuit as an amplifier. The output transformer can be the type found on old transistor radios.
400 mW amplifier TL431 (CB14549E)
- Details
- Written by: Newton C. Braga
