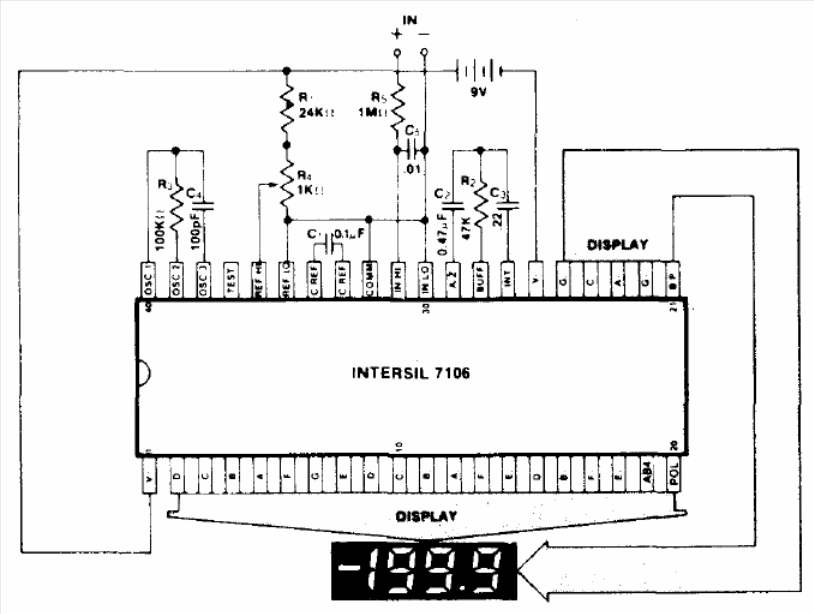

This circuit is from the 1983 Intersil Databook. This is a configuration that is still used today in low-cost multimeter and indicator instruments. The circuit is powered by 9 V and has a very low consumption. In this configuration is a basic voltmeter.
