12 W Stereo Amplifier TDA1010 (CB14721E)

Details
Written by: Newton C. Braga

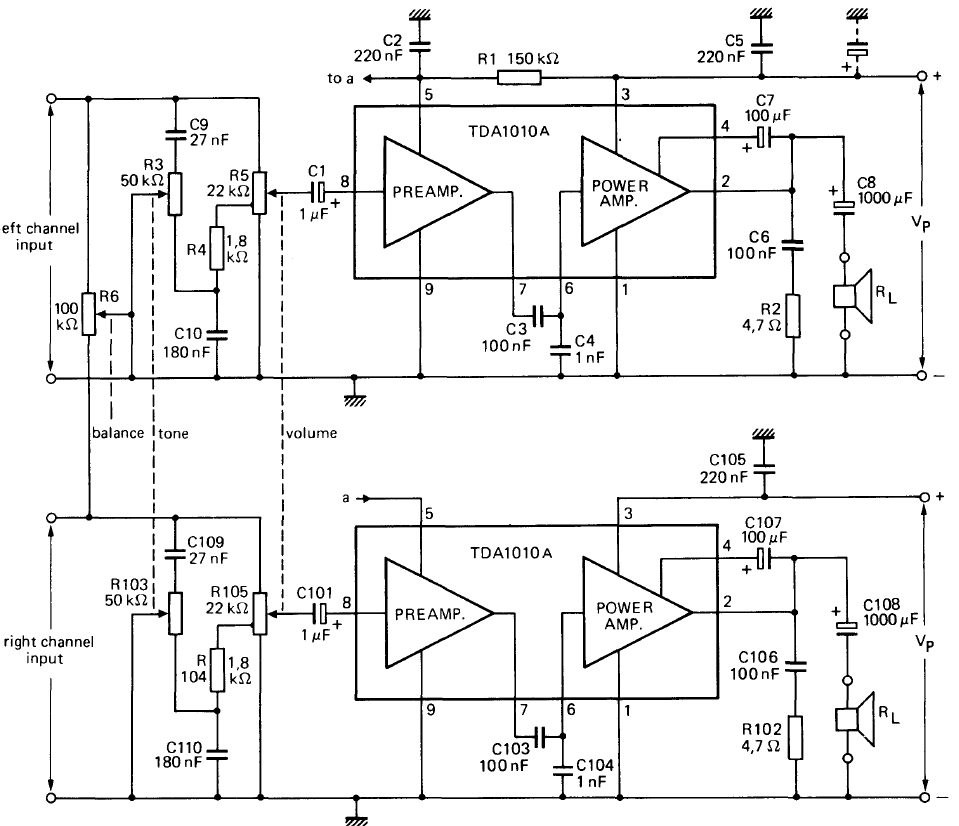

We found this amplifier for automotive use in the Philips integrated circuit manual from 1990. The impedance of the speaker can typically be between 2 and 8 ohms. The circuit includes a balance control.


| Clique na imagem para ampliar |
