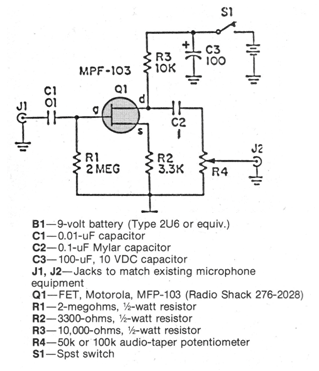

This microphone preamplifier with output intensity adjustment is suitable for modulating transmitters. The FET admits equivalent as the BF245. We found the circuit in an American publication from the 1980s. The power is sourced by a 9 V battery.
Microphone Booster (CB15041E)
- Details
- Written by: Newton C. Braga
