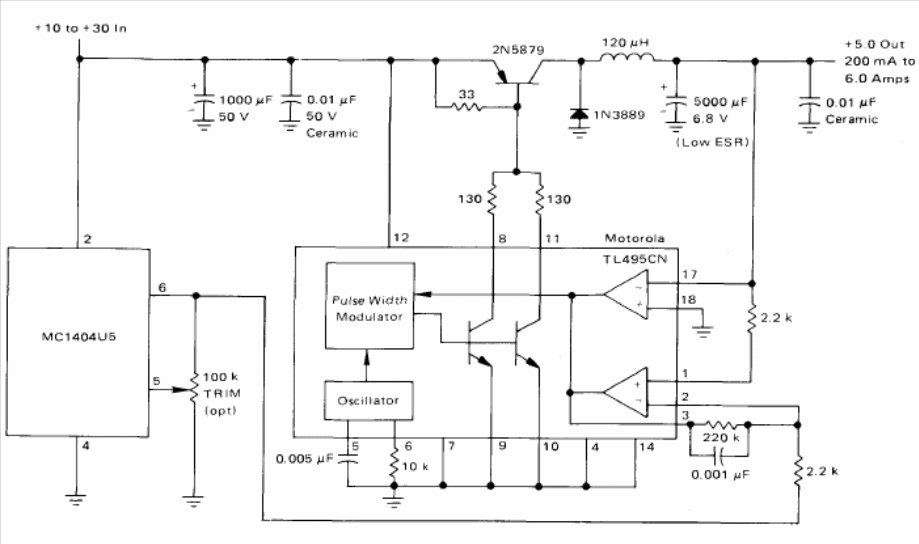

6 A Switching Regulator MC1404 (CB14546E)

The circuit shown is from Motorola's 1990 Linear Databook. Components are not currently common. An equivalent can be used for the transistor.
