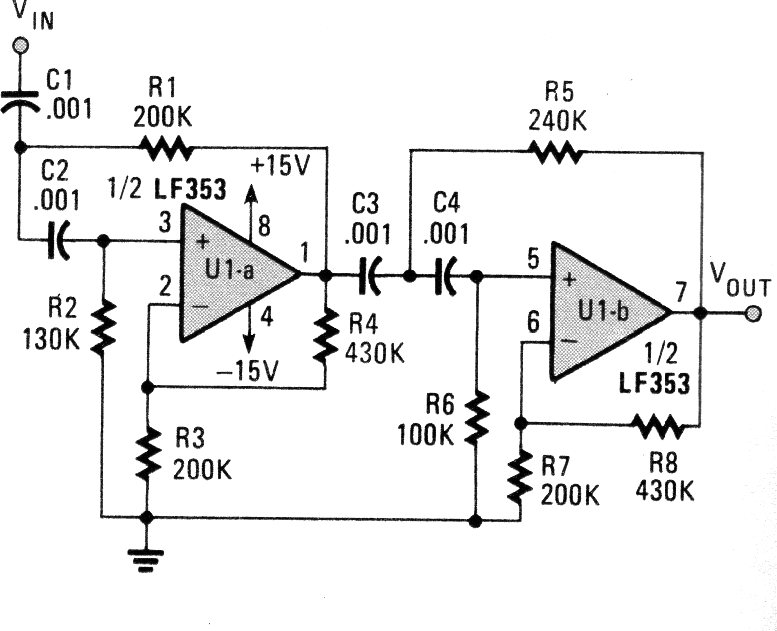

Fourth Order High-Pass Filter (CB14919E)

Details
Written by: Newton C. Braga



We found this circuit in a Poptronics from the 90's. Equivalent operational amplifiers can be used. The circuit must be supplied by a symmetrical source.
